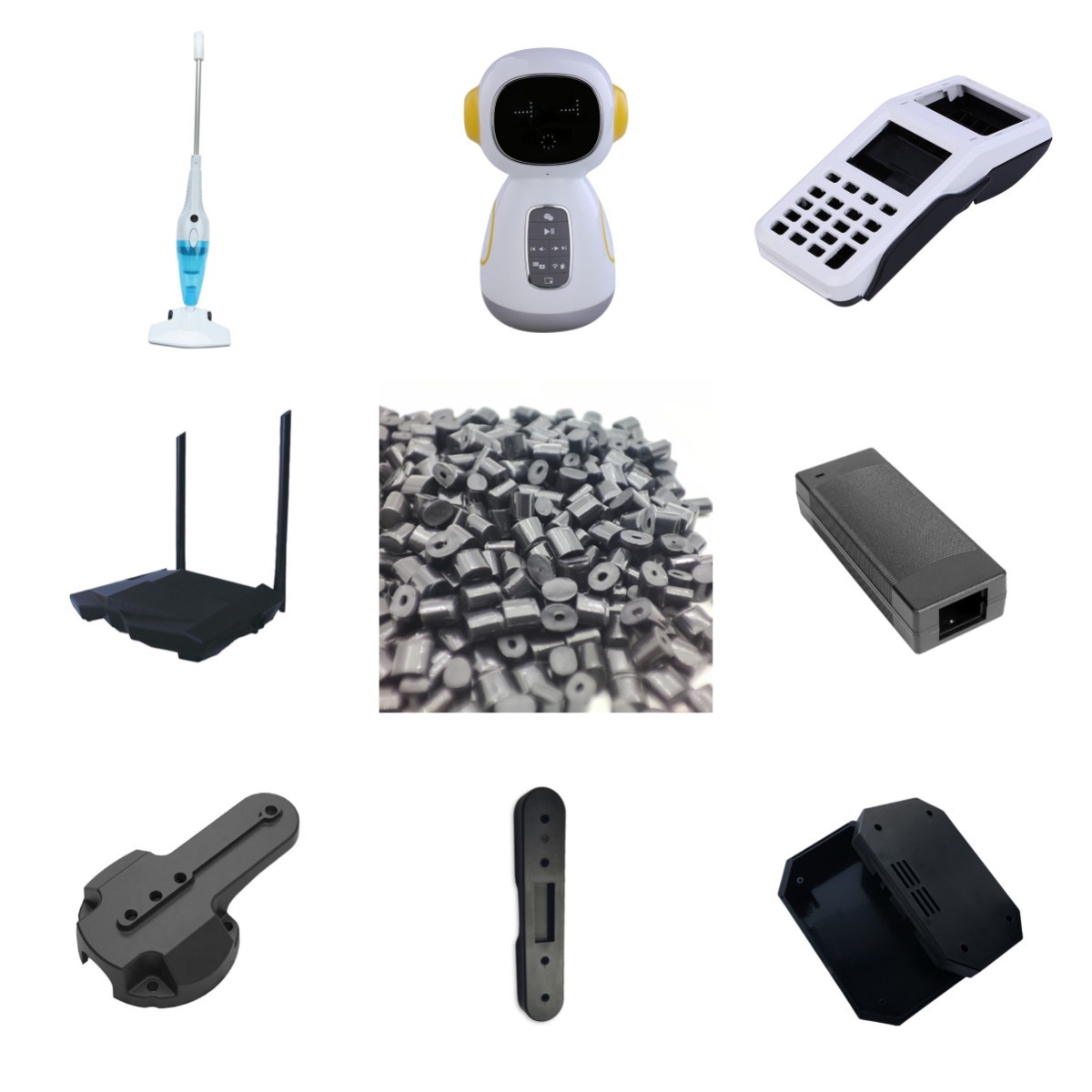

Balanced Flowability And Impact Strength ABS Plastic Raw Material Particles PC ABS Composite Resin Particles

Form

  Resin Pellets

Physical

Nominal Value

Test Method

Density / Specific Gravity

1.18 g/cm³

ASTM D792

Specific Gravity, Color

1.22 g/cm³

ASTM D792

Water Absorption(24 hr;23 °C)

0.10 %

ASTM D570

Moisture Absorption at Equilibrium(24 hr;23 °C)

0.40 %

ASTM D570

Linear Mold Shrinkage, Flow(Thickness; 3.2 mm)

0.4 - 0.6 %

Linear Mold Shrinkage, Transverse(Thickness; 3.2 mm)

0.4 - 0.6 %

Melt Flow(2.16 kg;260 °C;Condition E)

10 g/10min

ASTM D1238

Hardness, Rockwell R

123

ASTM D785

Mechanical

Nominal Value

Test Method

Tensile Strength, Yield

62.0 MPa

ASTM D638

Elongation at Break

40 %

ASTM D638

Flexural Yield Strength

102 MPa

ASTM D790

Flexural Modulus

2650 MPa

ASTM D790

Izod Impact, Notched

Temperature; 23 °C

Temperature; -30 °C

534 J/m

160 J/m

ASTM D256

Dart Drop, Total Energy

Temperature; -30 °C;0.5 in Tup;150 in/sec

Temperature; 23 °C;0.5 in Tup;150 in/sec

54.0 J

61.0 J

ASTM D3763

CTE, Flow(Temperature; -30 - 30 °C;2.7 mm/mm)

72.0 µm/m-°C

ASTM D696

CLTE, Transverse(Temperature; -30 - 30 °C;2.7 mm/mm)

72.0 µm/m-°C

ASTM D696

Thermal Conductivity

0.200 W/m-K

ASTM C177

Deflection Temperature

Thickness; 6.4 mm;Pressure; 0.46 MPa

Thickness; 3.2 mm;Pressure; 1.8 MPa

Thickness; 6.4 mm;Pressure; 1.8 MPa

104 °C

90.0 °C

95.0 °C

ASTM D648

Vicat Softening Point

112 °C

ASTM D1525

UL RTI, Electrical

85.0 °C

UL 746B

UL RTI, Mechanical with Impact

85.0 °C

UL 746B

UL RTI, Mechanical without Impact

85.0 °C

UL 746B

Flammability, UL94

Thickness; 1.49 mm;Thickness; 0.03 in

Thickness; 2.48 mm;Thickness; 0.03 in

V-0

5VB

UL 94

Oxygen Index

32 %

ASTM D2863

Hot Wire Ignition, HWI

60 - 120 sec

UL 746A

Electrical

Nominal Value

Test Method

Volume Resistivity

1.00e+17 ohms ·cm

ASTM D257

Surface Resistance

> = 1.00e+16 Ohms

ASTM D257

Dielectric Constant

Frequency; 50 - 60 Hz

Frequency; 100 Hz

3.0

3.0

ASTM D150

Dielectric Strength(Thickness; 3.2 mm)

19.4 kV/mm

ASTM D149

Dissipation Factor

Frequency; 100 Hz

Frequency; 50 - 60 Hz

0.0049

0.0050

ASTM D150

Arc Resistance(D48/50)

60 - 120 sec

ASTM D495

Comparative Tracking Index

400 - 600 V

UL 746A

High Amp Arc Ignition, HAI

> = 120 arcs

UL 746A

High Voltage Arc-Tracking Rate, HVTR

25.4 - 80.0 mm/min

UL 746A

Injection Molding

Drying Temperature

80 - 90 °C

Drying Time

3 - 4 hrs

Drying Time, Cumulative

8 hrs

Maximum Moisture Content

0.04 %

Melt Temperature

245 - 275 °C

Nozzle Temperature

245 - 275 °C

Front - Zone 3 Temperature

245 - 275 °C

Middle - Zone 2 Temperature

220 - 265 °C

Rear - Zone 1 Temperature

220 - 255 °C

Mold Temperature

60 - 80 °C

Back Pressure

0.3 - 0.7 MPa

Screw Speed

40 - 70 rpm

Shot to Cylinder Size

30 - 80 %

Vent Depth

0.038 - 0.076 mm
