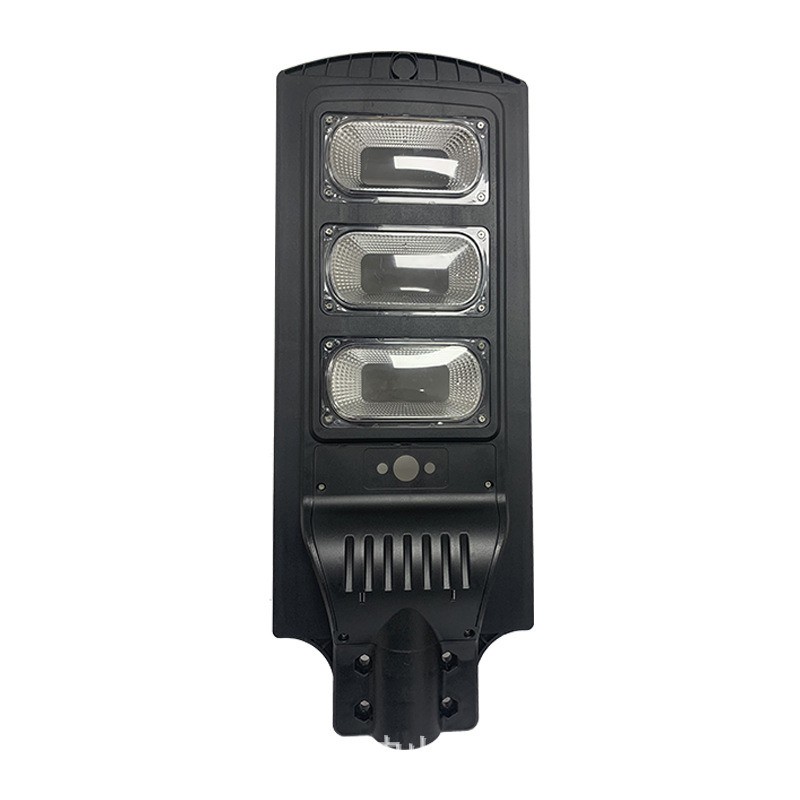

High Quality Plastics Raw Materials Thermal Conductive Plastics PA6 for LED Light Lamp

3-8097 VP-XH type PA6 resin can make strong, hard parts. Isotropic shrinkage properties. Inherently flame retardant. Application areas: Automotive industry, textile machinery, instruments and precision engineering. Typical parts: Electrical and electronic industry parts.

General

Form                                        Resin Pellets

Feature

Thermally

  Conductive(Isolation)

Physical

Nominal Value

Test Method

Density / Specific Gravity

1.56 g/cm³

ISO 1183

Linear Mold Shrinkage

0.2 - 0.5 %

Mechanical

Nominal Value

Test Method

Tensile Strength

140 MPa

Elongation at Break

1.60 %

Modulus of Elasticity

1.6E+4 MPa

Flexural Strength(Strain 2.1 %)

215 MPa

Flexural Modulus

1.4E+4 MPa

C harpy Impact Unnotched(23 °C)

30 kJ/m²

ISO 179 1eU

Thermal

Nominal Value

Test Method

Thermal Conductivity, In Plane(Hot Disk;Parallel 60x60x3 3.50 W/m-K

mm)

Maximum Service Temperature, Air

Continuous

90.0 °C

Short Term

210 °C

Deflection Temperature(Pressure; 1.8 MPa)

200 °C

Electrical

Nominal Value

Test Method

Volume Resistivity(10V)

> = 1.00e+6 ohms ·cm

Surface Resistance(10 V)

> = 1.00e+6 Ohms

Nozzle Temperature

270 - 280 °C

Zone 1

250 - 270 °C

Barrel - Zone 2 Temperature

270 - 290 °C

Barrel - Zone 3 Temperature

280 - 300 °C

Melt Temperature

270 °C

Mold Temperature

70.0 - 110 °C

Drying Temperature

Time 10 - 16 hr

75.0 °C

Time 4 - 6 hr

105 °C
