Sabic Lexan 503R

General

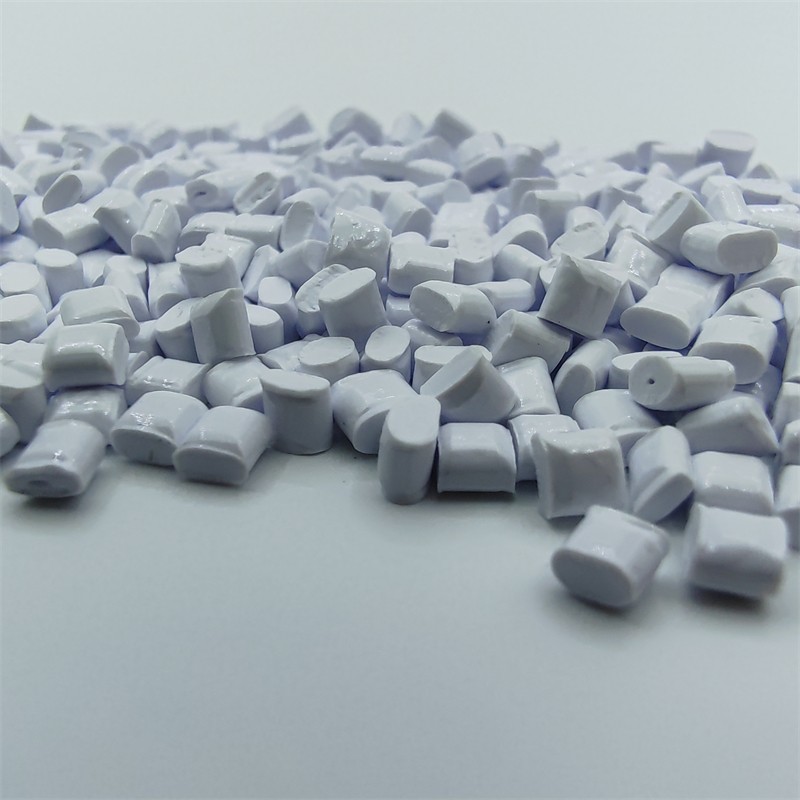

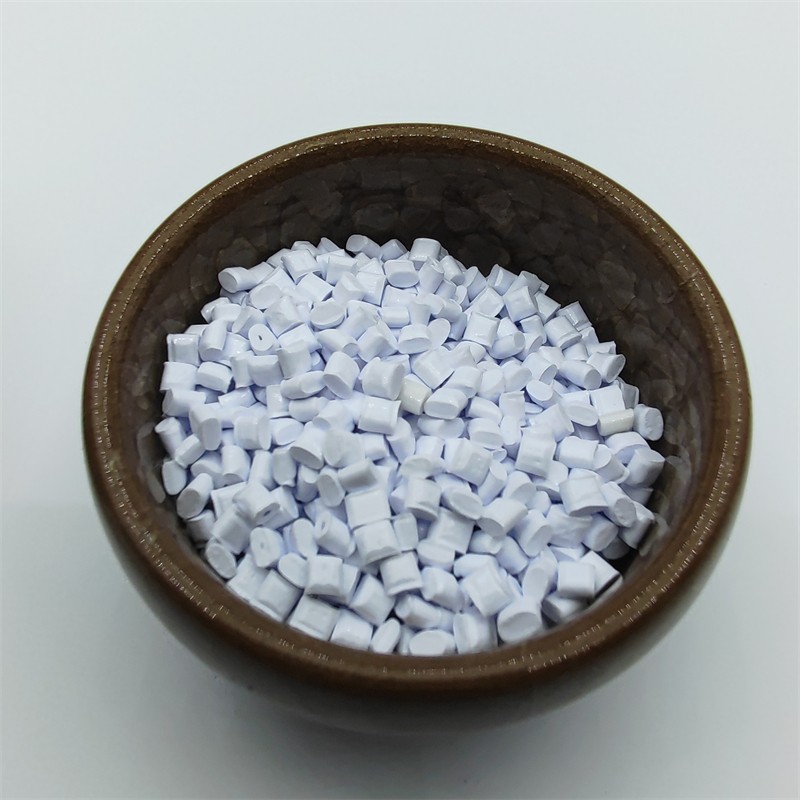

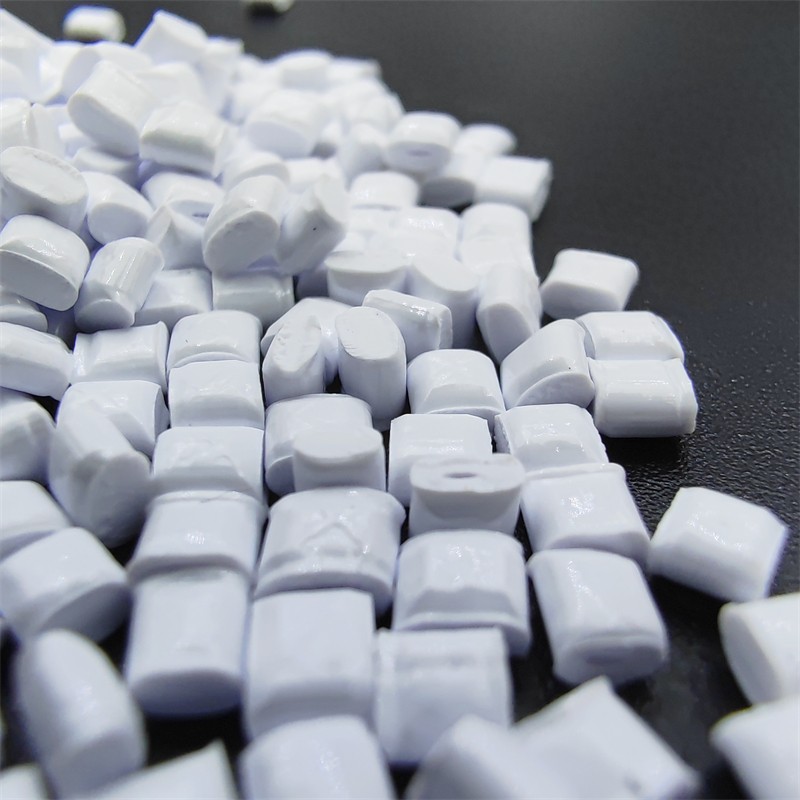

Form                                        Resin Pellets

Filler                                          Proprietary Filler

Feature

  Non-Brominated

  Combustion Resistant

  Non-Chlorinated               Medium Flow

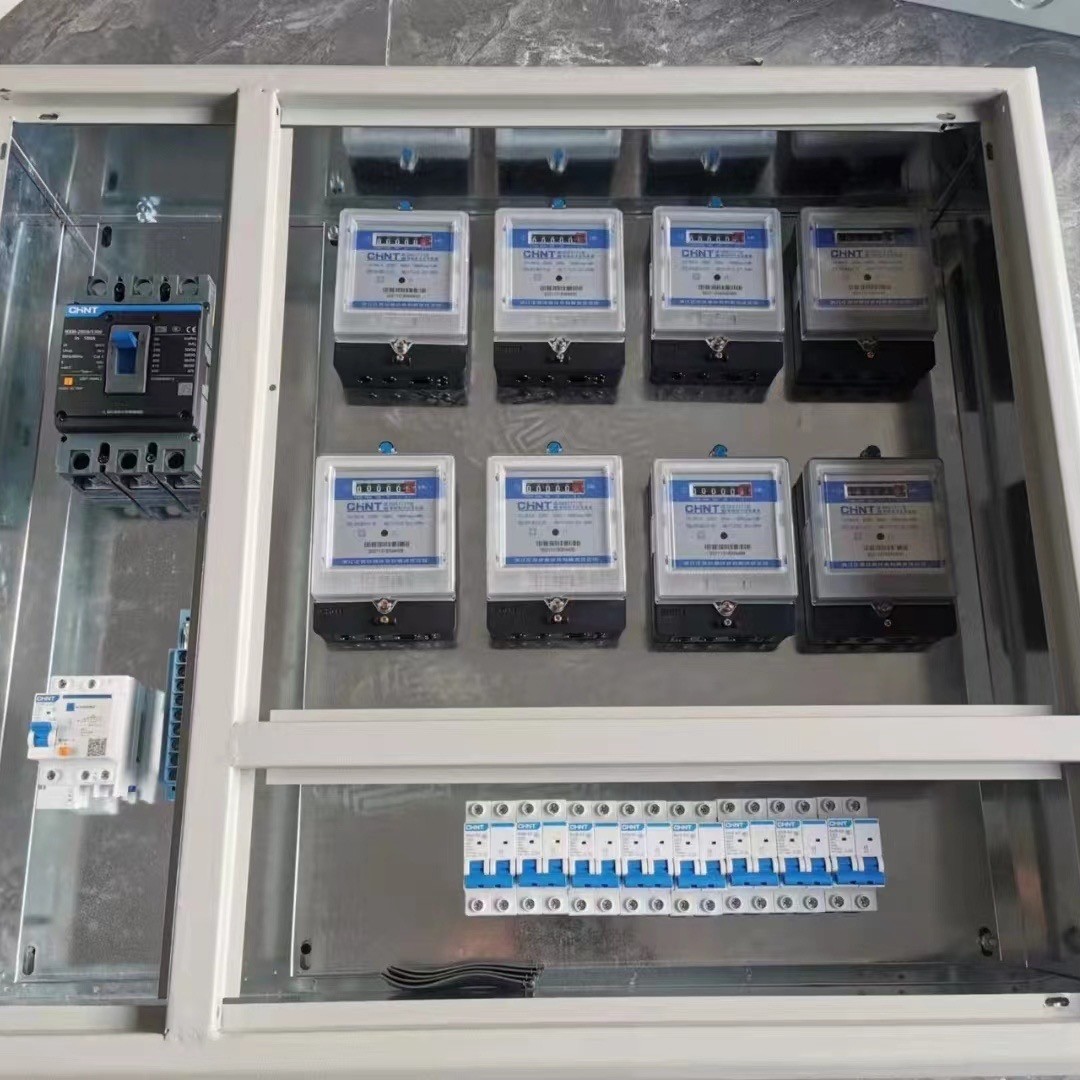

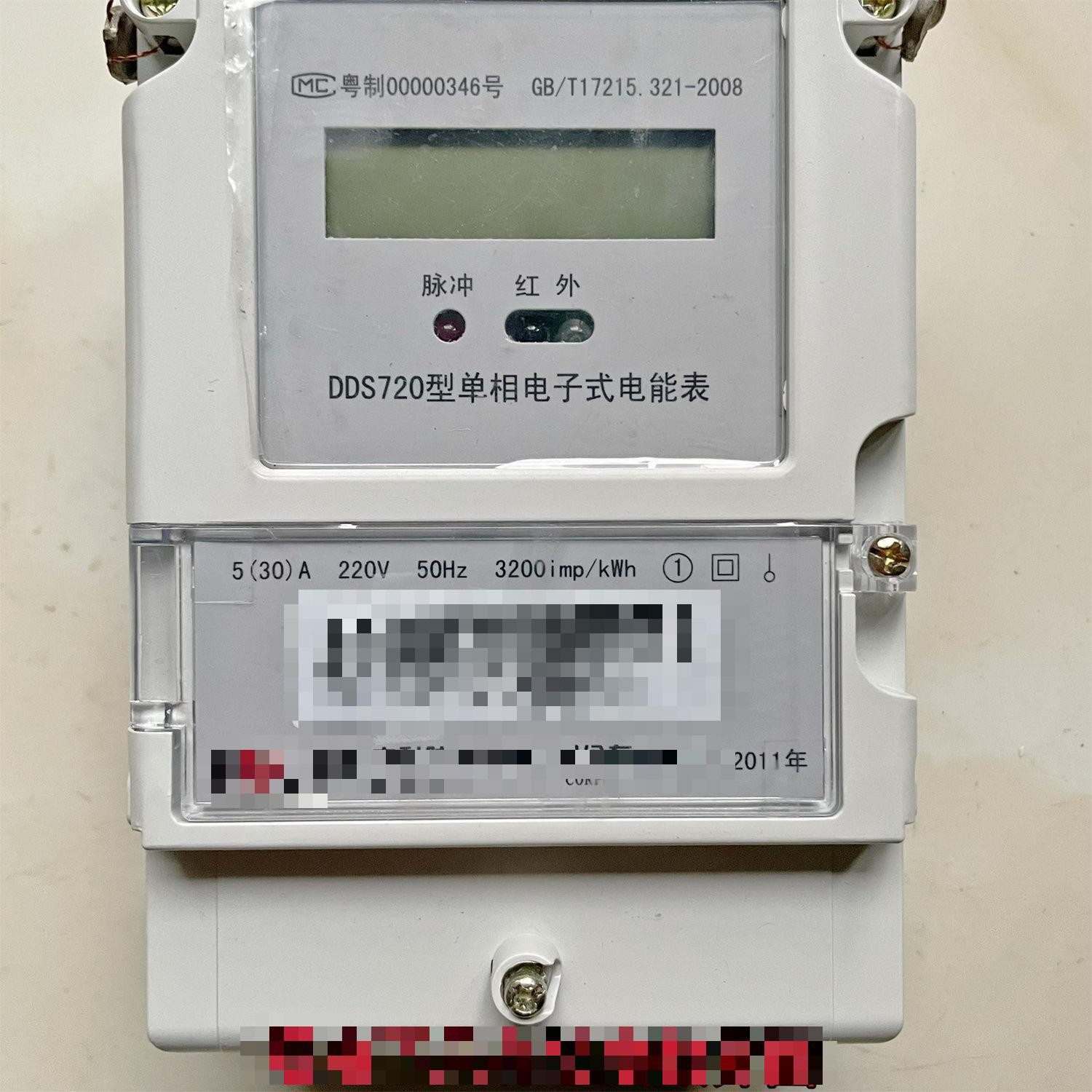

Uses                                          Electrical                            Structural Parts                  smart meter

Physical                                                                                 Nominal Value                                       Test Method

Density / Specific Gravity                                                     1.28 g/cm³                                             ASTM D792

Melt Flow(300 °C;1.2 kg)                                                      8.0 g/10min                                           ASTM D1238

Molding Shrinkage, Flow

0.40 - 0.60 %                                          ASTM D955

0.40 - 0.60 %                                          ISO 294-4

Mechanical                                                                            Nominal Value                                      Test Method

Tensile Modulus

1 mm/min                                                                           4000 MPa                                               ASTM D638

4300 MPa                                              ISO 527-1/1

Tensile Stress, Yield                                                             85.0 MPa                                                ISO 527-2/50

Tensile Stress, Break                                                             50.0 MPa                                                ISO 527-2/5

Tensile Strain, Break                                                             10 %                                                       ISO 527-2/50

Flexural Modulus(2 mm/min)                                              4100 MPa                                              ISO 178

Flexural Stress(2 mm/min)                                                   139 MPa                                                 ISO 178

C harpy Notched Impact Strength(23 °C)                            6.0 kJ/m²                                                ISO 179/1eA

Izod Impact, Notched(23 °C)                                               7.0 kJ/m²                                                ISO 180/1A




Thermal

Nominal Value

Test Method

Deflection Temperature Under Load, Unannealed

0.45 MPa

1.8 MPa

1.8 MPa



141 °C

129 °C

137 °C



ISO 75-2/B

ASTM D648

ISO 75-2/A

Deflection Temperature Under Load, Annealed(1.8 MPa)

139 °C

ISO 75-2/A

Vicat Softening Temperature

145 °C

ISO 306/B50

Ball Indentation Temperature

> 130 °C

IEC 60335-1

CLTE, Flow

1.5E-5 cm/cm/°C

ISO 11359-2

Flame Rating

1.5 mm

3 mm



V-0

5V

UL 94

Glow Wire Flammability Index

1 mm

2 mm

3 mm



960 °C

960 °C

960 °C

IEC 60695-2-12

Glow Wire Ignition Temperature [GWIT]

1 mm

2 mm

3 mm



850 °C

850 °C

850 °C

IEC 60695-2-13

Oxygen Index

38 %

ISO 4589-2

Electrical

Nominal Value

Test Method

Surface Resistivity

1.0E+14 ohms
